PRODUCT'S / MEDELCOM

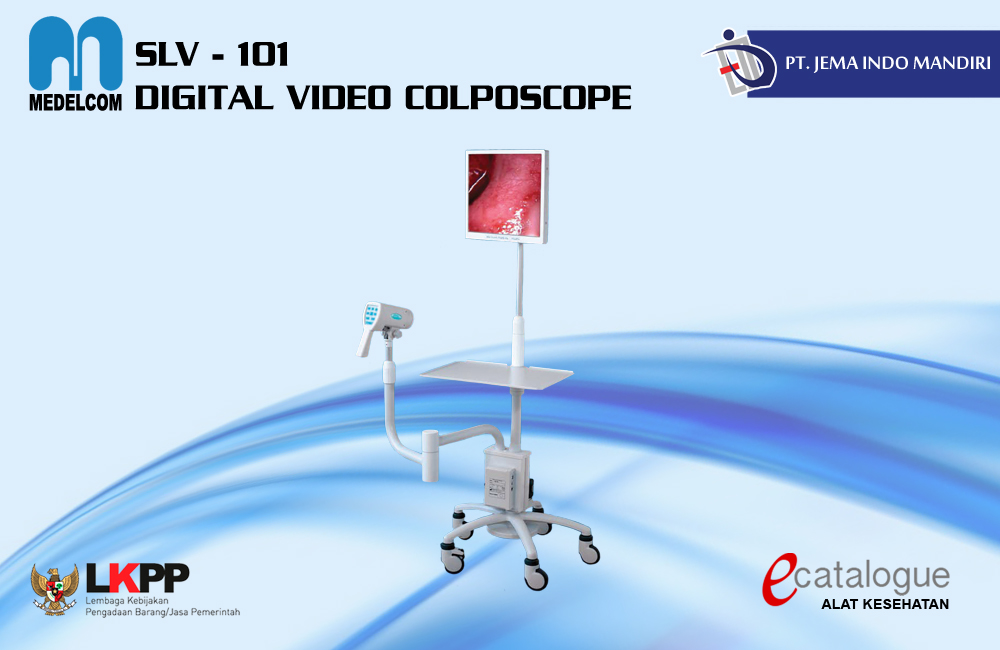

VIDEO COLPOSCOPE

SLV 101 SYSTEM

Colposcope is a medical instrument used to examine the vagina and the cervix of the uterus. Colposcope used for colposcopy to provide an enlarged view of the areas, allowing clinician. (colposcopist) to visually distinguish normal from abnormal appearing tissue and take directed. biopsies for further pathological examination.

- New generation of colposcopes

- Zoom up to 252 times

- Full screen high resolution images

- High intensity LED 5800K illumination

- Easy to use with one hand

- Image freeze function

- Electronic green filter

- Integrated USB 2.0 Video grabber

Digital Video camera

SONY, CCD

Effective resolution

500000 pixels

Magnification

Up to 252x

Lens

21x ZOOM

Digital

12x ZOOM

Focusing System

Aauto, One-Push AF, Manual

Manual focus control

Continuously adjustable

Angle of View (H)

48° (tele end) - 2.8° (wide end)

Depth of View

5 - 120 mm

Light source

Ultra-white LED of 5 generation

Illumination

> 2200 Lux

White Balance

Auto, ATW, Indoor, Outdoor, One-Push, Manual

Backlight Compensation

Auto

Working distance

Autofocus - 200- 300 mm Manual focus - 150 -350 mm

Camera output standard

NTSC / PAL

Internal Filter

Electronic green filter

Antiglare Filter

Manual glare control

Continuously working hours

> 8 h

MTBF

> 50000 h

Video output

S-Video, VIDEO, USB

System power supply voltage

AC (100-240) V, (50-60) Hz

System rated power

100W

System working temperature

10°C to 40°C

Classification

Electromedical equipment

Safety standards

Complies with IEC60601-1

Electromagnetic compatibility

Complies with requirements of IEC60601-1-2

Weight

Up to 20 Kg

LCD Monitor 17"

1 PC

Trolley with swing arm

1 PC

PRODUCT'S / MEDELCOM

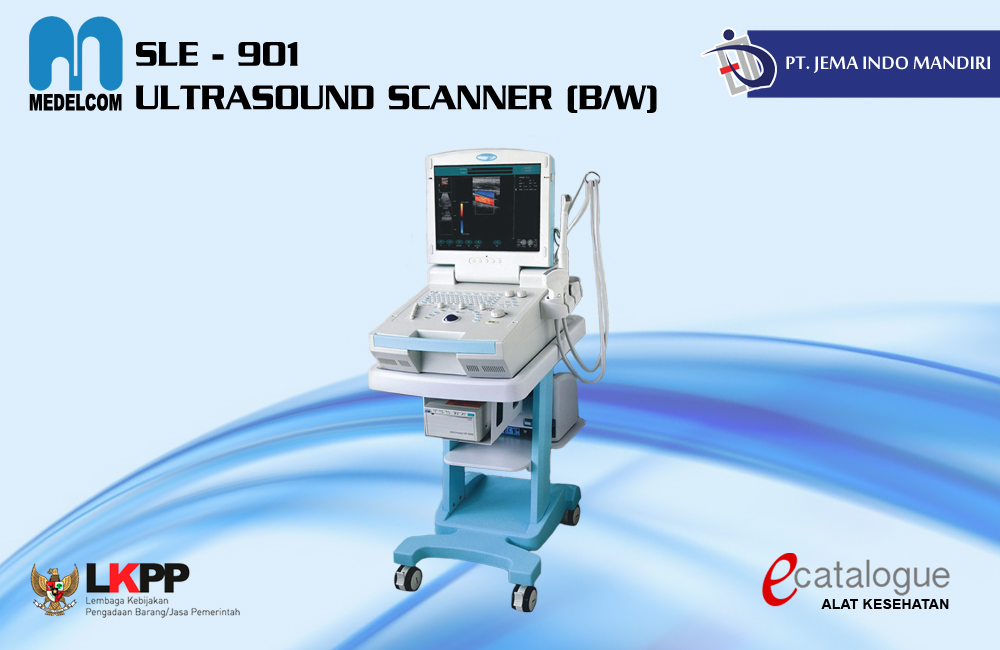

ULTRASOUND DIAGNOSTIC SCANNER ( B/W )

SLE - 901 SYSTEM

Type of probes

Linear, Convex, Micro-convex Array

Working frequency of probes

From 2.0 to 9.0 MHz

Scan modes: SLE-901

B, B+B, M, B+M

B - mode

Depth selection - from 40 to 220 mm Frame rate - up to 50 frame/ sec

M- mode

Adjustable sweep rate - 4 rates

B+ M- mode

Simultaneously B-Imaging and M-mode for all probes

Image focusing

Single Multi- focus - up to 4 focusing point Dynamic - up to 16 focusing point

Scroll mode

Step - 1 cm

Image processing

Image processing Gamma- coreection, 8 curves Adjustable Average Free rotate real time image

Image Memory

Storing at HDD as BMP images Storing at CD, DVD, USB Flash memory Cineloop - 256 frame Doppler cine memory with sound tracking

Calculations & Measurement

Complete packages of Calculations & Measurement in B and M modes, dedicated to Abdominal, Ob/Gyn, Cardiology application

Monitor

15 - inch Flat LCD

Power Supply

(100 - 240) V, (50- 60) Hz

Ext. Interface

USB 2.0 LAN connection

Dimensions

510 x 370 x 200 (mm)

Net Wight

Up to 14 Kg (without probes)

Main Unit

1

Convex Probe 3.5C60

1

B/W Printer

1

Paper Printer

1

UPS

1

Trolley

1

Ultrasound Gel

1

User's Manua

1
