LANDWIND - CHINA

CU 40 + PRINTER

35C60H Convex array transducer (for Abdomen, OB/GYN)

12.1 LCD monitor
High Definition Anti glare display
Adjustable screen view angle up to 60 degrees
Easily adjustable screen light to different enviroment

500 GB hardisk

2 Probe connectors

Yes

Ergonomic Operation Panel & Qwerty Keyboard Backlit keys & Task assigned control panel Simple one button operation workflow

Digital broadband beam-formers
Include rechargeable battery 7500mA, working hour : 3 Hours
Windows system platform
Dynamic receiving focusing
Dynamic frequency scanning
Real time dynamic aperture
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 6 times
Auto freeze function to protect main unit & probe
Cineloop 1024 frames
B Mode
M Mode
Pseudo color
Tissue Harmonic Imaging （THI）
Smart Speckle Reduction Imaging （SSR）
Dual Live Mode( side by side live display)
Quad and Dual display ( 2B & 4B )
Freehand 3D Imaging
Twin Fetus Measurement
Fetal growth curve
Embedded professional report format & templates
B-Steer Independent
Write zoom (hardware magnification) Multi-language operation interface （Chinese, English, Spanish）
Basic software package for general application
Biopsy & Lithoripsy postitioning function
2 USB ports
Video input\Output port
VGA port
HDMI port
LAN port
DICOM

Abdominal aplication package
Obstetrics aplication package
Gynaecology aplication package
Urology aplication package
cardiac aplication package
Small parts aplication package

Operator's Manual Book （User's Manual）
220V AC Power Cord
Internal rechargable lithium-ion battery 7500mA

Dimension 450x440x36mm
Nett weight 5.5kg (include battery)
Gross weight 10kg

Main Unit
35C60H Convex array transducer (for Abdomen, OB/GYN)
B&W Thermal Printer
Trolley

LANDWIND - CHINA

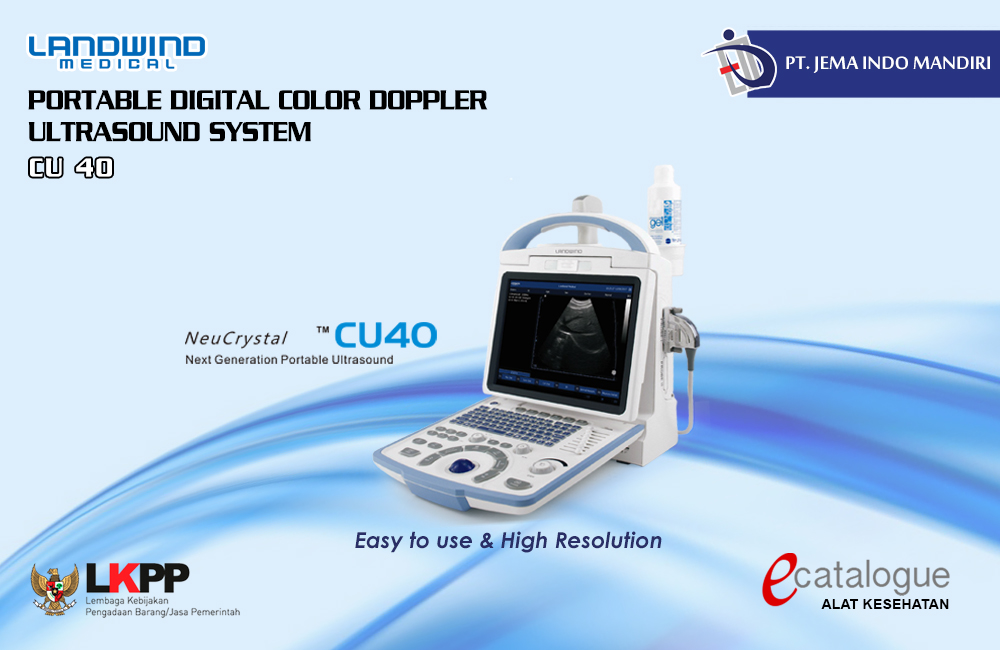

LANDWIND PORTABLE DIGITAL ULTRASOUND DIAGNOSTIC SC

CU 40

35C60H Convex array transducer (for Abdomen, OB/GYN)

12.1 LCD monitor
High Definition Anti glare display
Adjustable screen view angle up to 60 degrees
Easily adjustable screen light to different enviroment

500 GB hardisk

2 Probe connectors

Yes

Ergonomic Operation Panel & Qwerty Keyboard Backlit keys & Task assigned control panel Simple one button operation workflow

Digital broadband beam-formers
Include rechargeable battery 7500mA, working hour : 3 Hours
Windows system platform
Dynamic receiving focusing
Dynamic frequency scanning
Real time dynamic aperture
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 6 times
Auto freeze function to protect main unit & probe
Cineloop 1024 frames
B Mode
M Mode
Pseudo color
Tissue Harmonic Imaging （THI）
Smart Speckle Reduction Imaging （SSR）
Dual Live Mode( side by side live display)
Quad and Dual display ( 2B & 4B )
Freehand 3D Imaging
Twin Fetus Measurement
Fetal growth curve
Embedded professional report format & templates
B-Steer Independent
Write zoom (hardware magnification) Multi-language operation interface （Chinese, English, Spanish）
Basic software package for general application
Biopsy & Lithoripsy postitioning function
2 USB ports
Video input\Output port
VGA port
HDMI port
LAN port
DICOM

Abdominal aplication package
Obstetrics aplication package
Gynaecology aplication package
Urology aplication package
cardiac aplication package
Small parts aplication package

Operator's Manual Book （User's Manual）
220V AC Power Cord
Internal rechargable lithium-ion battery 7500mA

Dimension 450x440x36mm
Nett weight 5.5kg (include battery)
Gross weight 10kg

Main Unit
35C60H Convex array transducer (for Abdomen, OB/GYN)
B&W Thermal Printer
Trolley

LANDWIND - CHINA

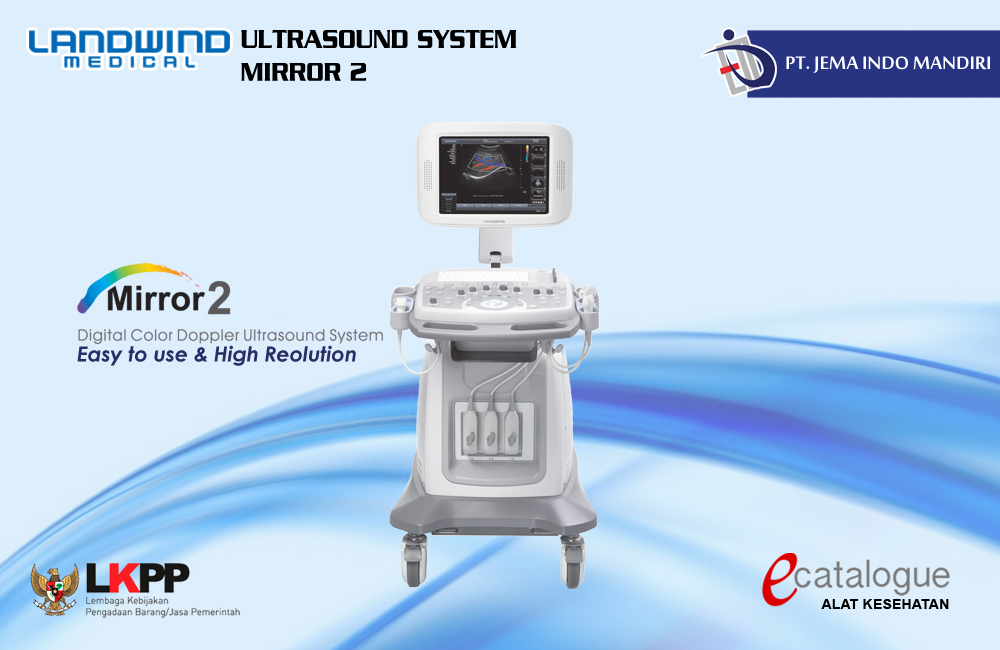

LANDWIND DIGITAL COLOR DOPPLER ULTRASOUND SYSTEM FOR OBGYN

MIRROR 2

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)

15-inch color LCD screen
Resolution 1024 x 768
Wide view angel of 170 degrees
Multi directional mechanic arm

Stereo audio speaker

500 GB hardisk

3 Probe connectors

4 probe holder
2 gel holder

Ergonomic Operation Panel
Qwerty Keyboard & Backlit keys
Input and output connections on the rear panel
Front Compartment for storage of accessories
Swivel castor with brakes, Front castor(2 ea),Rear castor (2 ea)

Multi beam processing technology
Digital fine focusing
Doppler signal oversampling processing algorithm
Frequency compound imaging Technology(FCI)
Raw data processing （B\M\C\PW Mode）
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 12 times
For Real time and frozen Image
Cineloop, B Mode 3000 frames, M Mode 30s
B Mode
M Mode
A Mode
Up to 4 twin fetus measurement
Real time 4D imaging
Real skin 4D imaging
Color Doppler Flow Imaging
Power Doppler Flow Imaging
Directional Power Doppler Flow Imaging
Pulsed Wave Doppler (PW)
High Pulse Repetition Frequency Module (HPRF)
Continuous Wave Doppler (CW)
Anatomical M-Mode（Up to 3 lines）
Color Flow M Mode (CM) & Tissue Velocity M Mode (TVM)
Real Time B+CF/PW, B+PF/PW -mode (Triplex scanning)
Tissue Specific Imaging（TSI general/muscle/fluid/fat ）
Tissue Harmonic Imaging （THI）
Pulse Inversion Harmonic Imaging （PIHI）
Speckle Reduction Imaging （LanSRI）
Multiple -angle Compounding Imaging（MCI）
Trapezoidal Imaging
Panoramic Imaging （LanScape ）
Dual Live Mode( side by side live display)
Quad and Dual display
Peak flow capture
Tissue Doppler Imaing (TDI)
Auto Trace & Calculation for PW
B-Steer & Color ROI-Steer Independent
High definition write zoom (hardware magnification)
One touch full screen display
One-touch quick image optimization
Multi-language operation interface （Chinese, English, Russian, French, Spanish, Portuguese ）
Basic software package for general application
Biopsy & Lithotripsy guidance function
Image clipboard
Acquire set - one button imaging parameter storage
Image format: BMP, JPG, TIFF, AVI
7 USB ports
DVD R/W driver
Video input\Output port
Audio input\Output port
S-Video input\Output port
Microphone input
DVI video output port
Ethernet\Remote\ RS-232 port input\Output
DICOM

Abdomen Application Package
Obstetrics Application Package
Gynecology Application Package
3D/4D Application Package
Cardiac Application Package
Vascular Application Package
Small Parts Application Package
Urology Application Package
Pediatrics Application Package
Orthopedics Application Package
TCD Application Package
Emergency Application Package
Biopsy needle guidance function
Lithotripsy positioning function

Operator's Manual Book （User's Manual）
220V AC Power Cord
System Recovery CD
Circuit Fuse

Power supply voltage 100~127 VAC or 220~240 VAC
Power supply frequency 50/60 Hz
Power consumption 500 VA

Height 1160mm
Width 590mm
Length 995mm
Weight 95kg (approx.)

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)
B&W Thermal Printer
Color Printer
UPS

LANDWIND - CHINA
LANDWIND DIGITAL COLOR DOPPLER ULTRASOUND SYSTEM FOR OBGYN 3D/4D FOR OBGYN 15 INCHI MONITOR

MIRROR 2

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)

15-inch color LCD screen
Resolution 1024 x 768
Wide view angel of 170 degrees
Multi directional mechanic arm

Stereo audio speaker

500 GB hardisk

3 Probe connectors

4 probe holder
2 gel holder

Ergonomic Operation Panel
Qwerty Keyboard & Backlit keys
Input and output connections on the rear panel
Front Compartment for storage of accessories
Swivel castor with brakes, Front castor(2 ea),Rear castor (2 ea)

Multi beam processing technology
Digital fine focusing
Doppler signal oversampling processing algorithm
Frequency compound imaging Technology(FCI)
Raw data processing （B\M\C\PW Mode）
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 12 times
For Real time and frozen Image
Cineloop, B Mode 3000 frames, M Mode 30s
B Mode
M Mode
A Mode
Up to 4 twin fetus measurement
Real time 4D imaging
Real skin 4D imaging
Color Doppler Flow Imaging
Power Doppler Flow Imaging
Directional Power Doppler Flow Imaging
Pulsed Wave Doppler (PW)
High Pulse Repetition Frequency Module (HPRF)
Continuous Wave Doppler (CW)
Anatomical M-Mode（Up to 3 lines）
Color Flow M Mode (CM) & Tissue Velocity M Mode (TVM)
Real Time B+CF/PW, B+PF/PW -mode (Triplex scanning)
Tissue Specific Imaging（TSI general/muscle/fluid/fat ）
Tissue Harmonic Imaging （THI）
Pulse Inversion Harmonic Imaging （PIHI）
Speckle Reduction Imaging （LanSRI）
Multiple -angle Compounding Imaging（MCI）
Trapezoidal Imaging
Panoramic Imaging （LanScape ）
Dual Live Mode( side by side live display)
Quad and Dual display
Peak flow capture
Tissue Doppler Imaing (TDI)
Auto Trace & Calculation for PW
B-Steer & Color ROI-Steer Independent
High definition write zoom (hardware magnification)
One touch full screen display
One-touch quick image optimization
Multi-language operation interface （Chinese, English, Russian, French, Spanish, Portuguese ）
Basic software package for general application
Biopsy & Lithotripsy guidance function
Image clipboard
Acquire set - one button imaging parameter storage
Image format: BMP, JPG, TIFF, AVI
7 USB ports
DVD R/W driver
Video input\Output port
Audio input\Output port
S-Video input\Output port
Microphone input
DVI video output port
Ethernet\Remote\ RS-232 port input\Output
DICOM

Abdomen Application Package
Obstetrics Application Package
Gynecology Application Package
3D/4D Application Package
Cardiac Application Package
Vascular Application Package
Small Parts Application Package
Urology Application Package
Pediatrics Application Package
Orthopedics Application Package
TCD Application Package
Emergency Application Package
Biopsy needle guidance function
Lithotripsy positioning function

Operator's Manual Book （User's Manual）
220V AC Power Cord
System Recovery CD
Circuit Fuse

Power supply voltage 100~127 VAC or 220~240 VAC
Power supply frequency 50/60 Hz
Power consumption 500 VA

Height 1160mm
Width 590mm
Length 995mm
Weight 95kg (approx.)

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)
B&W Thermal Printer
Color Printer
UPS

LANDWIND - CHINA
LANDWIND DIGITAL COLOR DOPPLER ULTRASOUND SYSTEM FOR RADIOLOGY 15 INCHI MONITOR

MIRROR 2

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
L5-10 Linier array transducer (for SMP, Vas, Superficial, MSK, Nerve, Pediatrics)

15-inch color LCD screen
Resolution 1024 x 768
Wide view angel of 170 degrees
Multi directional mechanic arm

Stereo audio speaker

500 GB hardisk

4 Probe connectors

4 probe holder
2 gel holder

Ergonomic Operation Panel
Qwerty Keyboard & Backlit keys
Input and output connections on the rear panel
Front Compartment for storage of accessories
Swivel castor with brakes, Front castor(2 ea),Rear castor (2 ea)

Multi beam processing technology
Digital fine focusing
Doppler signal oversampling processing algorithm
Frequency compound imaging Technology(FCI)
Raw data processing （B\M\C\PW Mode）
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 12 times
For Real time and frozen Image
Cineloop, B Mode 3000 frames, M Mode 30s
B Mode
M Mode
A Mode
Up to 4 twin fetus measurement
Real time 4D imaging
Real skin 4D imaging
Color Doppler Flow Imaging
Power Doppler Flow Imaging
Directional Power Doppler Flow Imaging
Pulsed Wave Doppler (PW)
High Pulse Repetition Frequency Module (HPRF)
Continuous Wave Doppler (CW)
Anatomical M-Mode（Up to 3 lines）
Color Flow M Mode (CM) & Tissue Velocity M Mode (TVM)
Real Time B+CF/PW, B+PF/PW -mode (Triplex scanning)
Tissue Specific Imaging（TSI general/muscle/fluid/fat ）
Tissue Harmonic Imaging （THI）
Pulse Inversion Harmonic Imaging （PIHI）
Speckle Reduction Imaging （LanSRI）
Multiple -angle Compounding Imaging（MCI）
Trapezoidal Imaging
Panoramic Imaging （LanScape ）
Dual Live Mode( side by side live display)
Quad and Dual display
Peak flow capture
Tissue Doppler Imaing (TDI)
Auto Trace & Calculation for PW
B-Steer & Color ROI-Steer Independent
High definition write zoom (hardware magnification)
One touch full screen display
One-touch quick image optimization
Multi-language operation interface （Chinese, English, Russian, French, Spanish, Portuguese ）
Basic software package for general application
Biopsy & Lithotripsy guidance function
Image clipboard
Acquire set - one button imaging parameter storage
Image format: BMP, JPG, TIFF, AVI
7 USB ports
DVD R/W driver
Video input\Output port
Audio input\Output port
S-Video input\Output port
Microphone input
DVI video output port
Ethernet\Remote\ RS-232 port input\Output
DICOM

Abdomen Application Package
Obstetrics Application Package
Gynecology Application Package
Cardiac Application Package
Vascular Application Package
Small Parts Application Package
Urology Application Package
Pediatrics Application Package
Orthopedics Application Package
TCD Application Package
Emergency Application Package
Biopsy needle guidance function
Lithotripsy positioning function

Operator's Manual Book （User's Manual）
220V AC Power Cord
System Recovery CD
Circuit Fuse

Power supply voltage 100~127 VAC or 220~240 VAC
Power supply frequency 50/60 Hz
Power consumption 500 VA

Height 1160mm
Width 590mm
Length 995mm
Weight 95kg (approx.)

Main unit
C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
B&W Thermal Printer
UPS

LANDWIND - CHINA
LANDWIND DIGITAL COLOR DOPPLER ULTRASOUND DIAGNOSTIC SYSTEM 3D/4D FOR OBGYN 19 INCHI MONITOR

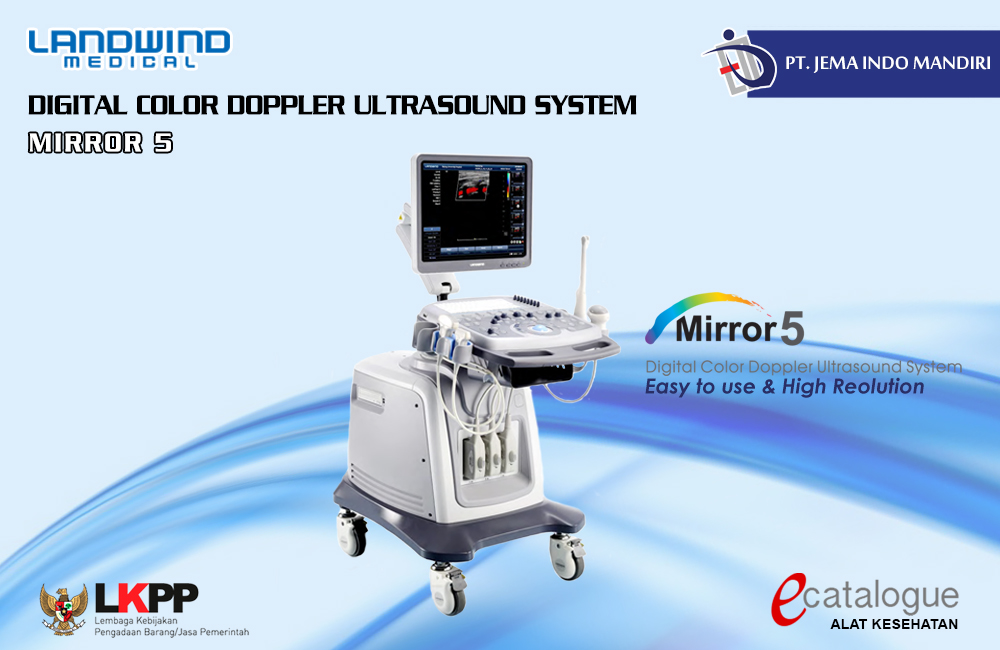

MIRROR 5

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)

19-inch color LCD screen
Resolution 1024 x 768
Wide view angel of 170 degrees
Multi directional mechanic arm

Stereo audio speaker

500 GB hardisk

4 Probe connectors

4 probe holder
2 gel holder

Ergonomic Operation Panel
Qwerty Keyboard & Backlit keys
Input and output connections on the rear panel
Front Compartment for storage of accessories
Swivel castor with brakes, Front castor(2 ea),Rear castor (2 ea)

Multi beam processing technology
Digital fine focusing
Doppler signal oversampling processing algorithm
Frequency compound imaging Technology(FCI)
Raw data processing （B\M\C\PW Mode）
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 12 times
For Real time and frozen Image
Cineloop, B Mode 3000 frames, M Mode 30s
B Mode
M Mode
A Mode
Up to 4 twin fetus measurement
Real time 4D imaging
Real skin 4D imaging
Color Doppler Flow Imaging
Power Doppler Flow Imaging
Directional Power Doppler Flow Imaging
Pulsed Wave Doppler (PW)
High Pulse Repetition Frequency Module (HPRF)
Continuous Wave Doppler (CW)
Anatomical M-Mode（Up to 3 lines）
Color Flow M Mode (CM) & Tissue Velocity M Mode (TVM)
Real Time B+CF/PW, B+PF/PW -mode (Triplex scanning)
Tissue Specific Imaging（TSI general/muscle/fluid/fat ）
Tissue Harmonic Imaging （THI）
Pulse Inversion Harmonic Imaging （PIHI）
Speckle Reduction Imaging （LanSRI）
Multiple -angle Compounding Imaging（MCI）
Trapezoidal Imaging
Panoramic Imaging （LanScape ）
Dual Live Mode( side by side live display)
Quad and Dual display
Peak flow capture
Tissue Doppler Imaing (TDI)
Auto Trace & Calculation for PW
B-Steer & Color ROI-Steer Independent
High definition write zoom (hardware magnification)
One touch full screen display
One-touch quick image optimization
Multi-language operation interface （Chinese, English, Russian, French, Spanish, Portuguese ）
Basic software package for general application
Biopsy & Lithotripsy guidance function
Image clipboard
Acquire set - one button imaging parameter storage
Image format: BMP, JPG, TIFF, AVI
7 USB ports
DVD R/W driver
Video input\Output port
Audio input\Output port
S-Video input\Output port
Microphone input
DVI video output port
Ethernet\Remote\ RS-232 port input\Output
DICOM

Abdomen Application Package
Obstetrics Application Package
Gynecology Application Package
Cardiac Application Package
Vascular Application Package
Small Parts Application Package
Urology Application Package
Pediatrics Application Package
Orthopedics Application Package
TCD Application Package
Emergency Application Package
Biopsy needle guidance function
Lithotripsy positioning function

Operator's Manual Book （User's Manual）
220V AC Power Cord
System Recovery CD
Circuit Fuse

Power supply voltage 100~127 VAC or 220~240 VAC
Power supply frequency 50/60 Hz
Power consumption 500 VA

Height 1160mm
Width 590mm
Length 995mm
Weight 95kg (approx.)

Main unit
C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
B&W Thermal Printer
UPS

LANDWIND - CHINA
LANDWIND DIGITAL COLOR DOPPLER ULTRASOUND SYSTEM FOR OBGYN 15 INCHI MONITOR

MIRROR 5

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)

19-inch color LCD screen
Resolution 1024 x 768
Wide view angel of 170 degrees
Multi directional mechanic arm

Stereo audio speaker

500 GB hardisk

4 Probe connectors

4 probe holder
2 gel holder

Ergonomic Operation Panel
Qwerty Keyboard & Backlit keys
Input and output connections on the rear panel
Front Compartment for storage of accessories
Swivel castor with brakes, Front castor(2 ea),Rear castor (2 ea)

Multi beam processing technology
Digital fine focusing
Doppler signal oversampling processing algorithm
Frequency compound imaging Technology(FCI)
Raw data processing （B\M\C\PW Mode）
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 12 times
For Real time and frozen Image
Cineloop, B Mode 3000 frames, M Mode 30s
B Mode
M Mode
A Mode
Up to 4 twin fetus measurement
Real time 4D imaging
Real skin 4D imaging
Color Doppler Flow Imaging
Power Doppler Flow Imaging
Directional Power Doppler Flow Imaging
Pulsed Wave Doppler (PW)
High Pulse Repetition Frequency Module (HPRF)
Continuous Wave Doppler (CW)
Anatomical M-Mode（Up to 3 lines）
Color Flow M Mode (CM) & Tissue Velocity M Mode (TVM)
Real Time B+CF/PW, B+PF/PW -mode (Triplex scanning)
Tissue Specific Imaging（TSI general/muscle/fluid/fat ）
Tissue Harmonic Imaging （THI）
Pulse Inversion Harmonic Imaging （PIHI）
Speckle Reduction Imaging （LanSRI）
Multiple -angle Compounding Imaging（MCI）
Trapezoidal Imaging
Panoramic Imaging （LanScape ）
Dual Live Mode( side by side live display)
Quad and Dual display
Peak flow capture
Tissue Doppler Imaing (TDI)
Auto Trace & Calculation for PW
B-Steer & Color ROI-Steer Independent
High definition write zoom (hardware magnification)
One touch full screen display
One-touch quick image optimization
Multi-language operation interface （Chinese, English, Russian, French, Spanish, Portuguese ）
Basic software package for general application
Biopsy & Lithotripsy guidance function
Image clipboard
Acquire set - one button imaging parameter storage
Image format: BMP, JPG, TIFF, AVI
7 USB ports
DVD R/W driver
Video input\Output port
Audio input\Output port
S-Video input\Output port
Microphone input
DVI video output port
Ethernet\Remote\ RS-232 port input\Output
DICOM

Abdomen Application Package
Obstetrics Application Package
Gynecology Application Package
Cardiac Application Package
Vascular Application Package
Small Parts Application Package
Urology Application Package
Pediatrics Application Package
Orthopedics Application Package
TCD Application Package
Emergency Application Package
Biopsy needle guidance function
Lithotripsy positioning function

Operator's Manual Book （User's Manual）
220V AC Power Cord
System Recovery CD
Circuit Fuse

Power supply voltage 100~127 VAC or 220~240 VAC
Power supply frequency 50/60 Hz
Power consumption 500 VA

Height 1160mm
Width 590mm
Length 995mm
Weight 95kg (approx.)

Main unit
C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
B&W Thermal Printer
UPS

LANDWIND - CHINA
LANDWIND DIGITAL COLOR DOPPLER ULTRASOUND SYSTEM FOR RADIOLOGY 19 INCHI MONITOR

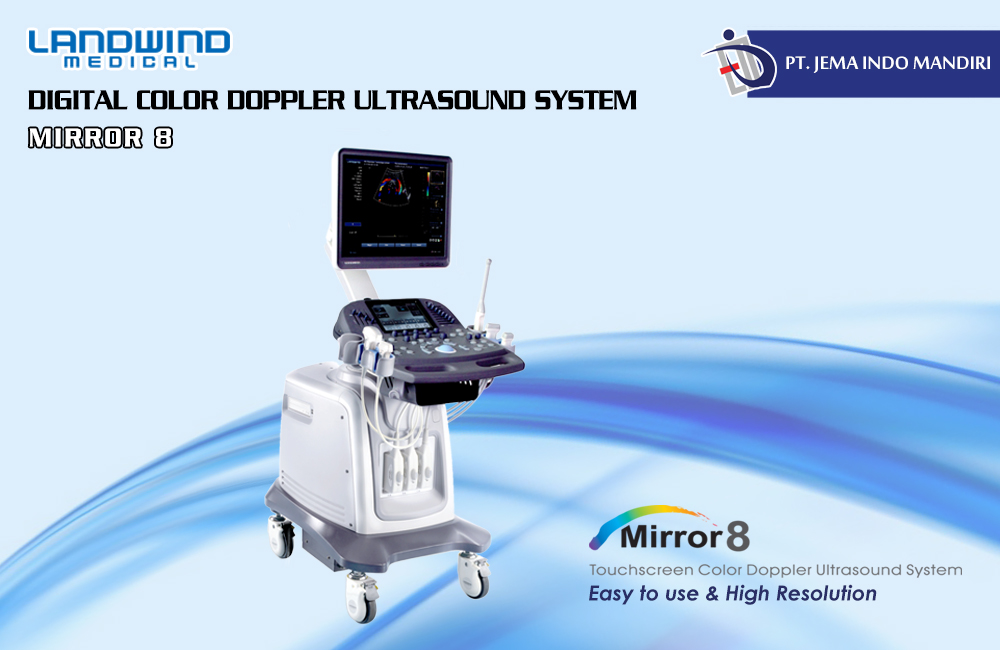

MIRROR 8

C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
L5-10 Linear Array Transducer (for SMP, Vas, Superficial, MSK, Nerve, pediatrics)

19-inch color LCD screen
Resolution 1024 x 768
Wide view angel of 170 degrees
Multi directional mechanic arm

Stereo audio speaker

500 GB hardisk

4 Probe connectors

4 probe holder
2 gel holder

Ergonomic Operation Panel
Qwerty Keyboard & Backlit keys
Input and output connections on the rear panel
Front Compartment for storage of accessories
Swivel castor with brakes, Front castor(2 ea),Rear castor (2 ea)

Multi beam processing technology
Digital fine focusing
Doppler signal oversampling processing algorithm
Frequency compound imaging Technology(FCI)
Raw data processing （B\M\C\PW Mode）
8-segment TGC
4 transmit focal zone
120dB system dynamic range
Image depth up to 31 cm (probe dependent)
Zoom ratio : 12 times
For Real time and frozen Image
Cineloop, B Mode 3000 frames, M Mode 30s
B Mode
M Mode
A Mode
Up to 4 twin fetus measurement
Real time 4D imaging
Real skin 4D imaging
Color Doppler Flow Imaging
Power Doppler Flow Imaging
Directional Power Doppler Flow Imaging
Pulsed Wave Doppler (PW)
High Pulse Repetition Frequency Module (HPRF)
Continuous Wave Doppler (CW)
Anatomical M-Mode（Up to 3 lines）
Color Flow M Mode (CM) & Tissue Velocity M Mode (TVM)
Real Time B+CF/PW, B+PF/PW -mode (Triplex scanning)
Tissue Specific Imaging（TSI general/muscle/fluid/fat ）
Tissue Harmonic Imaging （THI）
Pulse Inversion Harmonic Imaging （PIHI）
Speckle Reduction Imaging （LanSRI）
Multiple -angle Compounding Imaging（MCI）
Trapezoidal Imaging
Panoramic Imaging （LanScape ）
Dual Live Mode( side by side live display)
Quad and Dual display
Peak flow capture
Tissue Doppler Imaing (TDI)
Auto Trace & Calculation for PW
B-Steer & Color ROI-Steer Independent
High definition write zoom (hardware magnification)
One touch full screen display
One-touch quick image optimization
Multi-language operation interface （Chinese, English, Russian, French, Spanish, Portuguese ）
Basic software package for general application
Biopsy & Lithotripsy guidance function
Image clipboard
Acquire set - one button imaging parameter storage
Image format: BMP, JPG, TIFF, AVI
7 USB ports
DVD R/W driver
Video input\Output port
Audio input\Output port
S-Video input\Output port
Microphone input
DVI video output port
Ethernet\Remote\ RS-232 port input\Output
DICOM

Abdomen Application Package
Obstetrics Application Package
Gynecology Application Package
Cardiac Application Package
Vascular Application Package
Small Parts Application Package
Urology Application Package
Pediatrics Application Package
Orthopedics Application Package
TCD Application Package
Emergency Application Package
Biopsy needle guidance function
Lithotripsy positioning function

Operator's Manual Book （User's Manual）
220V AC Power Cord
System Recovery CD
Circuit Fuse

Power supply voltage 100~127 VAC or 220~240 VAC
Power supply frequency 50/60 Hz
Power consumption 500 VA

Height 1160mm
Width 590mm
Length 995mm
Weight 95kg (approx.)

Main unit
C2-5 Convex array transducer (for Abdomen, OB/GYN, Vas, Nerve)
4C2-5n Convex Volume Probe, for Abdomen 4D (used with 4D software module for GYN, ABD scan)
EC4-9 Endocavity array transducer, Straight Holder (for OB/GYN, Urology)
B&W Thermal Printer
UPS

      Back
