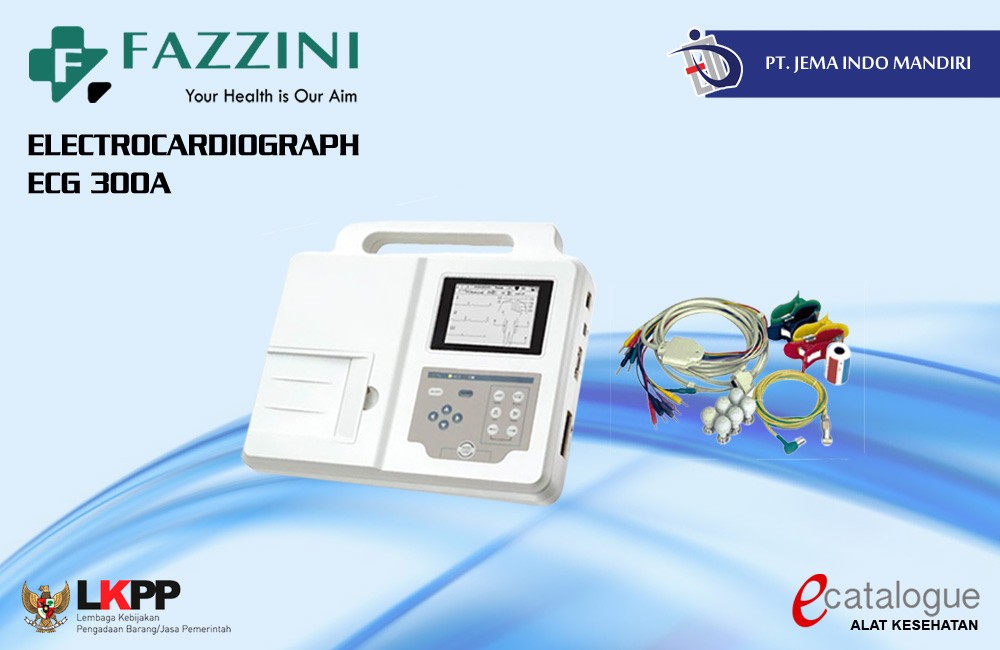

Alternate current
100V-250V, 50/60Hz
Battery Type
Li-ion
Rated Voltage
14.4V,1.6Ah
Working Time
4 H
Charging Time
6.5 H
Built-in
Yes
Paper Dimention
80mm x 20 m
Resolution
320x240 Pixel
LCD Type
B/W
Display dimensions
3,8"
Charging Time
6.5 H
Interpretation
Yes
Available languages
ITA/ENG/FR/SPA/PORT
Password protection
Yes
USB OUTPUT
Yes
RS 232 OUTPUT
Yes
Memory
150 ECG
12 Lead ECG Patient Cable
1
Battery Type
1
RMains Cable
1
Paper Roll
1
Chest Electodes
6.
Limb Electrodes
4

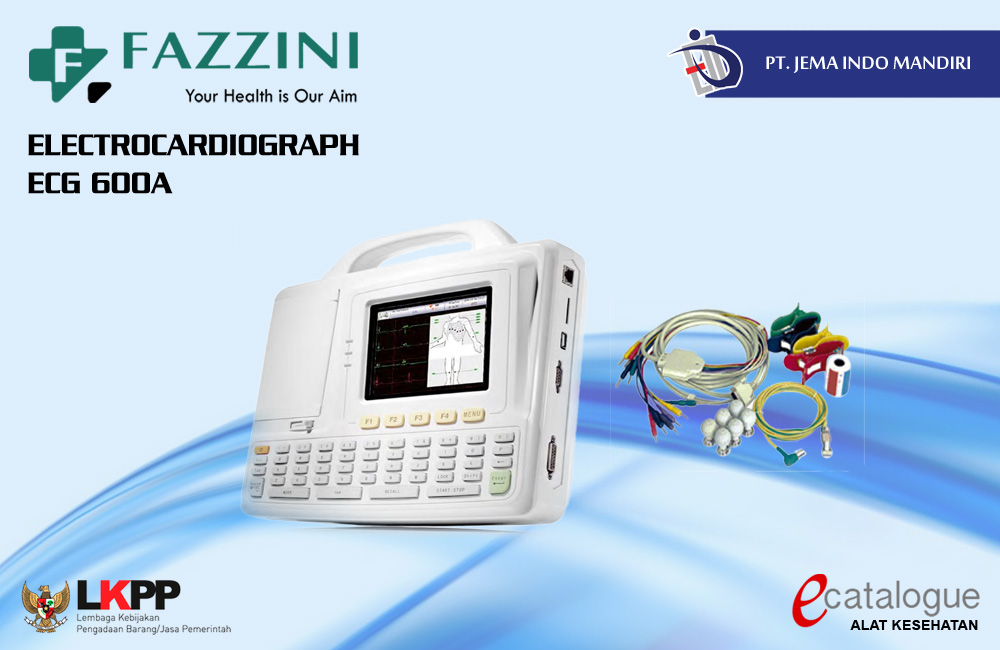

Alternate current
100V-250V, 50/60Hz
Battery Type
Li-ion
Rated Voltage
14.4V,1.6Ah
Working Time
4 H
Charging Time
6.5 H
Built-in
Yes
Paper Dimention
110×140mm-20m/ Z-Folded
Resolution
320x240 Pixel
LCD Type
B/W
Display dimensions
5,7"
Charging Time
6.5 H
Interpretation
Yes
Available languages
ITA/ENG/FR/SPA/PORT
Password protection
Yes
USB OUTPUT
Yes
RS 232 OUTPUT
Yes
Memory
300 ECG
12 Lead ECG Patient Cable
1
Battery Type
1
RMains Cable
1
Paper Roll
1
Chest Electodes
6.
Limb Electrodes
4

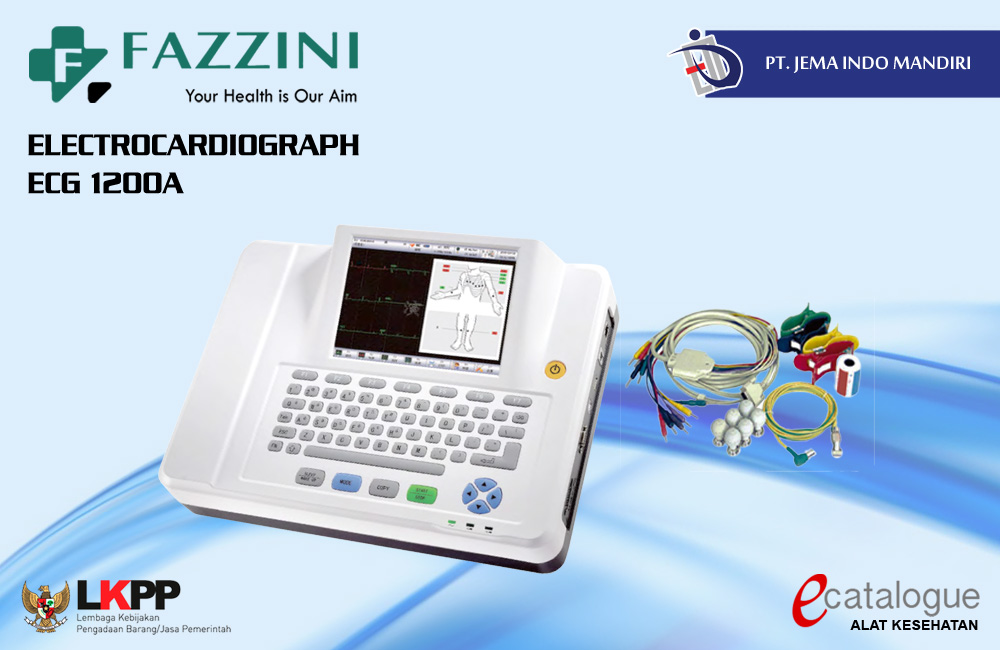

Alternate current
100V-250V, 50/60Hz
Battery Type
Li-ion
Rated Voltage
14.4V,2.2Ah
Working Time
4,5 H
Charging Time
6.5 H
Built-in
Yes
Paper Dimention
210mm×295mm (100P/Z-Folded)
Roll
216mm x 30m
Resolution
800 x 600 Pixel
LCD Type
Colour
Display dimensions
8,4"
Charging Time
6.5 H
Interpretation
Yes
Available languages
ITA/ENG/FR/SPA/PORT
Password protection
Yes
USB OUTPUT
Yes
RS 232 OUTPUT
Yes
Memory
300 ECG
12 Lead ECG Patient Cable
1
Battery Type
1
Mains Cable
1
Paper Roll
1
Chest Electodes
6.
Limb Electrodes
4

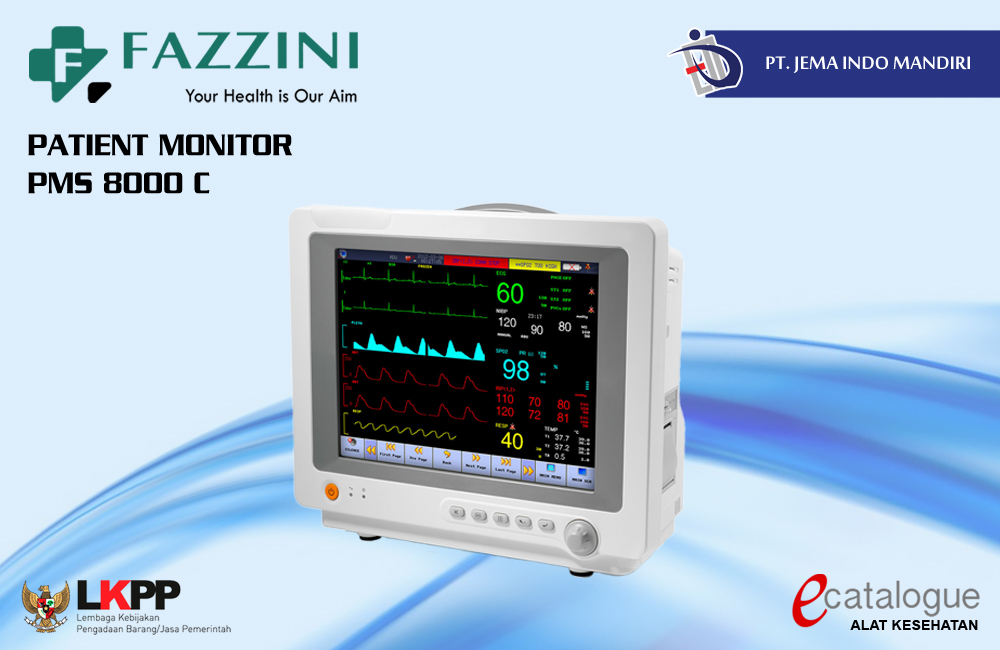

Temperature
0-40°C
Humidity
15-85%
Power Supply
AC100-250V, 50/60Hz
Battery Type
Rechargeable plug & play battery Lithium- ion
Battery Capacity
4000mA
Battery Recharging Time
Maximum 6.5 hours for charging
Battery backup
4 hours for continuous working
Display
12.1” color TFT touch screen
Resolution
800x600
Trace
12 waveforms
Indicator
Dual alarm indicator lights Power indicator light Battery indicator light Operating key sound
Interface
Parameter cable interface AC power input socket Software upgrade through networking port or USB port USB/SD port RJ45 port Nurse call port
Alarm Event Recall
500 groups(120hours)
Wave Call
30 mins
NIBP Recall
2000 groups
Trend Graph
120 hours
Trend Table
120 hours
Alarm
User-adjustable High and Low 3-level Limits Prioritized audible and visual alarm
Network
Connected to Central Monitoring System by Hardwire/Wireless
Recorder
Built-in; thermal array 2 waveforms Speed:25mm/s,50mm/s
Record width
50mm
Data
Power-off storage
Method
Thoracic impedance
RR measurement range
Adult : 6-12bpm
Resolution
±1 rpm
RESP Apnea Alarm
10s-40s
Alarm
Audible and visual alarm; alarm events recallable
Sweep Speed
6.25,12.5,25mm/s
Gain Selection
X0.25, X0.5, X1, X2, X4
Lead Type
Cardio TecTM 12-leads ECG Analysis, 5 Lead and 3 lead selectable
12-lead cable
I; II; III; aVR; aVL;aVF; V1-V6.
5-lead cable
RA; LA; RL; LL; V or R; L; N; F; C
3-lead cable
RA; LA; RL; LL; V or R; L; N; F; C
Lead selection
12-Lead I; II; III; aVR; aVL;aVF; V1-V6.
Gain Selection
X0.25,X0.25, X0.5, X1, X2,X4, auto
Sweep Speed
6.25,12.5, 25, 50mm/s
Heart Rate Range
Adult: 15-300bpm Pediatric/Neonate:15-350bpm
Resolution
1 bpm
Protection
Withstand 4000VAC/50Hz voltage in isolation;
Accuracy
±1% or ±2bpm (whichever is greater)
Filter
ECG enlarge width: MON: 0.5-55Hz DIA: 0.05-150Hz OPE: 1-20Hz
ST SEGMENT detection
-2.0mV - +2.0Mv (Automatic)
Arrhythmia analysis
Yes
Pacemaker detection
detectable
Method
Automatic oscillometric
Work mode
Manual / Automatic/Continuous
Auto measure time
Adjustable(1-480min)
Measurement Unit
mmHg / Kpa selectable
Measurement types
Systolic, Diastolic, Mean
Range of systolic pressure
Adult Mode:40-270mmHg Pediatric Mode: 40-200mmHg Pediatric Mode: 40-200mmHg
Range of diastolic pressure
Adult Mode:10-215mmHg Pediatric Mode:10-150mmHg Neonate Mode 10-100mmHg
Range of mean pressure
Adult Mode:20-235mmHg Pediatric Mode:20-165mmHg Neonate Mode 20-110mmHg
Over-pressure protection
both Hardware and software over pressure protection
Accuracy
Less than ±5mmHg
Resolution
1mmHg
Alarm
Systolic, Diastolic, Mean
PR from NIBP
40-240bpm
Measurement range
0-50°C
TEMP sensor
Standard configuration- skin TEMP sensor,
Resolution
0.1°C
Accuracy
±0.1°C (Exclusive of error of sensor)
Channel
T1, T2, TD (Temperature Difference)
Measurement & alar
1~100%
Resolution
1%
Accuracy
±2% (70~100%,Ped, non-motion) ±3% (70-100%, Neo, non-motion) 0-69% unspecified
Alarm range
0~100%
Pulse rate
Accuracy: ±3bpm(non-motion) ±5bpm(motion) Alarm range:20~250bpm
12pin 12-lead Clip Connector ECG Cable
1
Electrodes (Adult)
1 Pack
12PIND TO DB9F Digital SpO2
Alarm range
0~100%
Extension Cable
1
ADU Reusable Digital Finger Clip
SpO2 Sensor(DB9F)
1
2P Skin Adult TEMP Probe (10K)
1
Adult NIBP Cuff
1
Adult NIBP Tube (white) 2M
1
Power Cord
1
Ground Cable
1
User Manual
1

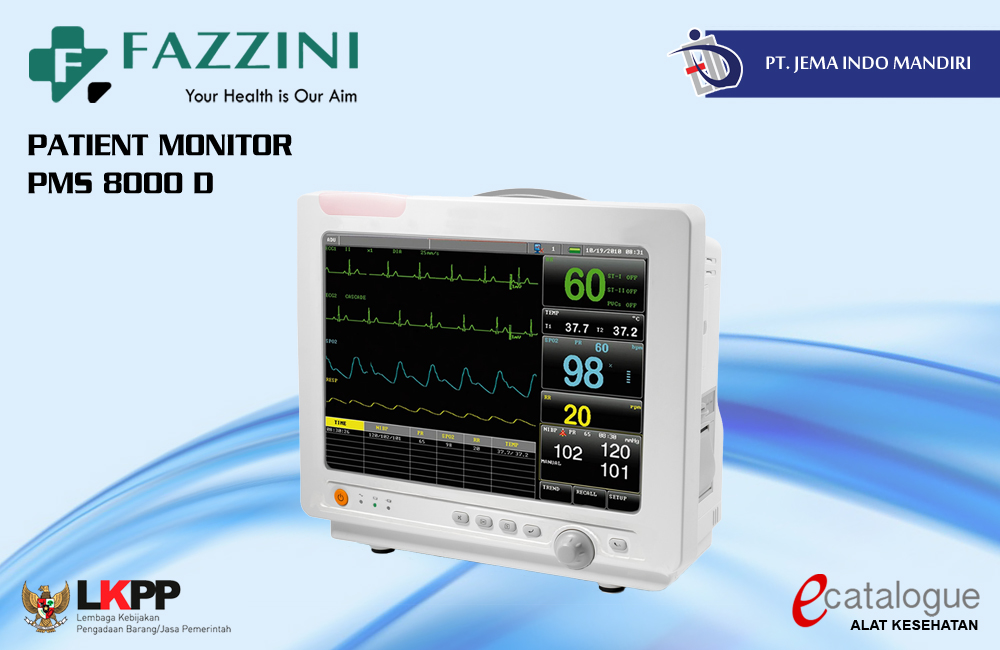

Temperature
0-40°C
Humidity
15-85%
Power Supply
AC100-250V, 50/60Hz
Battery Type
Rechargeable Lithium- ion battery
Battery Capacity
2200mA
Battery Recharging Time
Maximum 6.5 hours for charging
Battery working period
4 hours for continuous working
Patient Range
Adult, Pediatric, Neonatal
Display
12.1” color TFT screen
Resolution
800x600
Trace
4 waveforms
Sweep Speed
12.5mm/s, 25mm/s, 50mm/s
Indicator
Dual alarm indicator lights Power indicator light Battery indicator light QRS beep and alarm sound Operating key sound
Interface
Parameter cable interface/ AC power input socket/Software upgrade through Software upgrade through networking port or USB port networking port / or USB port / USB port RJ45 port / Nurse call port Nurse call port
Trend time
96 hours trending
Alarm
User-adjustable High and Low 3-level Limits Prioritized audible and visual alar
Recorder
Built-in; thermal array 2 waveforms Speed:25mm/s,50mm/s Record width: 50mm
Data
Power-off storage
Method
impedance impedance
RR measurement range
Adult: 0-120bpm Neonate: 0-150bpm
Resolution
±1 rpm
RESP Apnea Alarm
10s-40s
Alarm
Audible and visual alarm; alarm events recallable
Sweep Speed
6.25,12.5,25mm/s
Gain Selection
X1, X2, X4
Lead Type
5 Lead and 3 lead selectable
5-lead cable
RA; LA; RL; LL; V or R; L; N; F; C
3-lead cable
RA; LA; LL or R; L; F
Lead selection
5-lead: I; II; III; aVR; aVL 3-lead: I; II; III
Gain Selection
XX0.25, X0.5, X1, X2
Sweep Speed
12.5, 25, 50mm/s
Heart Rate Range
Adult: 15-300bpm Pediatric/Neonate:15-350bpm
Resolution
1 bpm
Protection
Withstand 4000VAC/50Hz voltage in isolation isolation; Against electrosurgical interference and defibrillation
Accuracy
±1% or ±2bpm (whichever is greater)
Filter
ECG enlarge width: MON: 0.5-55Hz DIA: 0.05-150Hz OPE: 1-20Hz
ST SEGMENT detection
-2.0mV - +2.0Mv (Automatic)
Arrhythmia analysis
Yes
Pacemaker detection
detectable
Method
Automatic oscillometric
Work mode
Manual / Automatic/ Continuous
Auto measure time
Adjustable(1-480min)
Measurement Unit
mmHg / Kpa selectable
Measurement types
Systolic, Diastolic, Mean
Range of systolic pressure
Adult Mode:40-270mmHg Pediatric Mode: 40-200mmHg Pediatric Mode: 40-200mmHg
Range of diastolic pressure
Adult Mode:10-235mmHg Pediatric Mode:20-165mmHg Neonate Mode 20-110mmHg
Range of mean pressure
Adult Mode:20-235mmHg Pediatric Mode:20-165mmHg Neonate Mode 20-110mmHg
Over-pressure protection
both Hardware and software over pressure protection
Accuracy
Less than ±5mmHg
Resolution
1mmHg
Alarm
Systolic, Diastolic, Mean
PR from NIBP
40-240bpm
Measurement range
0-50°C
TEMP sensor
Standard configuration- skin TEMP sensor,
Resolution
0.1°C
Accuracy
±0.1°C (Exclusive of error of sensor)
Channel
T1, T2, TD (Temperature Difference)
Measurement & alar
1~100%
Resolution
1%
Accuracy
±2% (70~100%,Ped, non-motion) ±3% (70-100%, Neo, non-motion) 0-69% unspecified
Alarm range
0~100%
Pulse rate
Accuracy: ±3bpm(non-motion) ±5bpm(motion) Alarm range:20~250bpm
Skin Adult TEMP Probe (10K)
1
Adult Reusable Digital SpO2 Sensor
1
Reuseable Adult Cuff (25-35cm)
Adult NIBP Tube (black) 2M
1
5-lead Clip Connector ECG Cable (ADU)
1
MSB Electrodes for Adult
1 Pack
Power Cord
1
Ground Cable
1
User Manual
1
