PRODUCT'S / ELPIS MEDICAL

ELPIS MEDICAL - KOREA

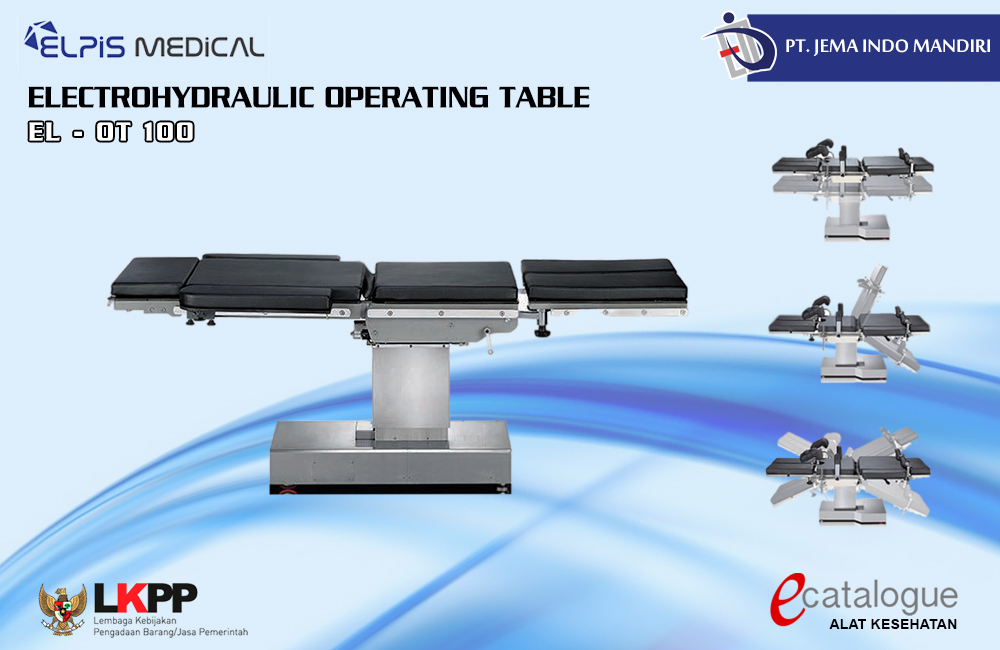

EL-OT 100

Table Top Section

4-Sections

Length Of Table Top

2080 mm

Width of Table Top (with rails)

580 mm

Head section size

510mm(W) × 245mm(L)

Head section size

510mm(W) × 613mm(L)

Hip section size

510mm(W) × 510mm(L)

Leg section size

247mm(W) × 557mm(L)

Weight,Safe Working load,Base Size

180 Kg, 250 Kg, 423mm(W) × 863mm(L)

Height Ranges

700mm~900mm

Latetal lilt

L25° / R25°

Trendelenberg

H30° / F30°

Head section

Up 35° / Down 90°

Back Controller

Up 75° / Down 35°

Leg Section

Up 25° / Down 35°

Elevation System

Electro-Hydraulic

Hand Switch

1ea

Arm Rest

1set

Waist Supporters

1set

Shoulder Supporters

1set

Screen Frame

1ea

Power Cord

1ea

Vaccum and Irrigation Foot Switch

1 pc

Disposable Silicone Tip (Pack of 50 Pcs)

1 pack

Sprayer gun for rinsing/cleaning vagina

1 pc

Spray gun for spraying solution

1 pc

Suction bottle 2500cc

1 pc

ELPIS MEDICAL - KOREA

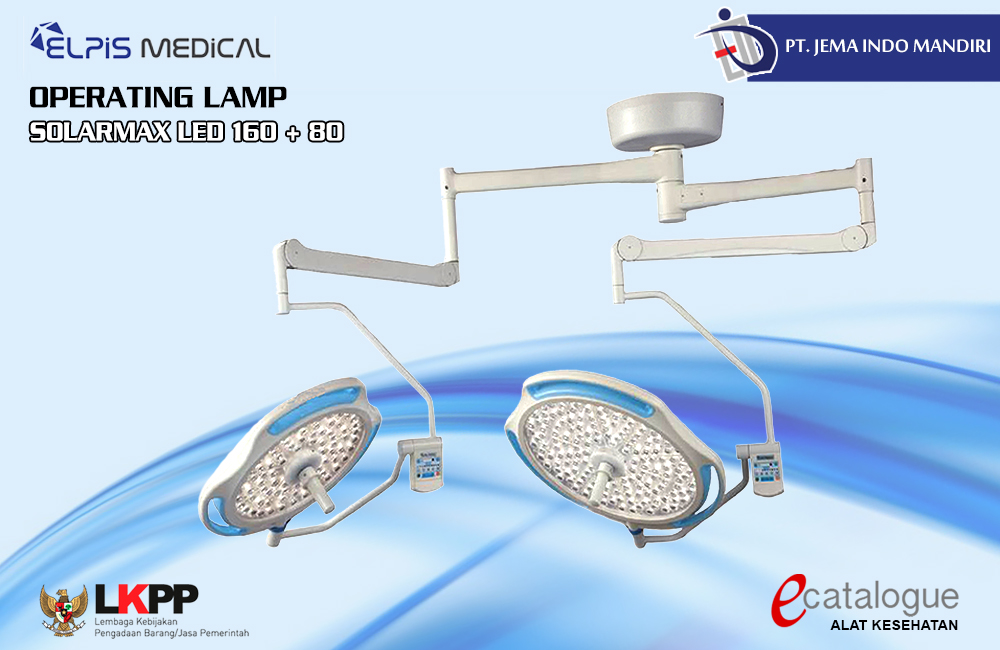

SOLARMAX LED160+80

Lamp diameter

830mm+640mm

Lamp type

convex lens

Maximum Illumination(Lux)

160,000Lux + 120,000Lux

Colour temperature(K)

4200

CRI (colur rendering index)

≥ 96

Focusing field diameter

Φ100~300mm + Φ100~250mm

Light field depth

850mm

Number of LEDs

240(160+80)EA

LED Life time

50,000 hours

Touch on/off

Touch panel & Remote Control (option)

Power consumption

240W + 120W

Dimming range

20~100% (5steps)

Opto Semiconductors

Germany LED Osram

Spring arm

Germany Ondal

ELPIS MEDICAL - KOREA

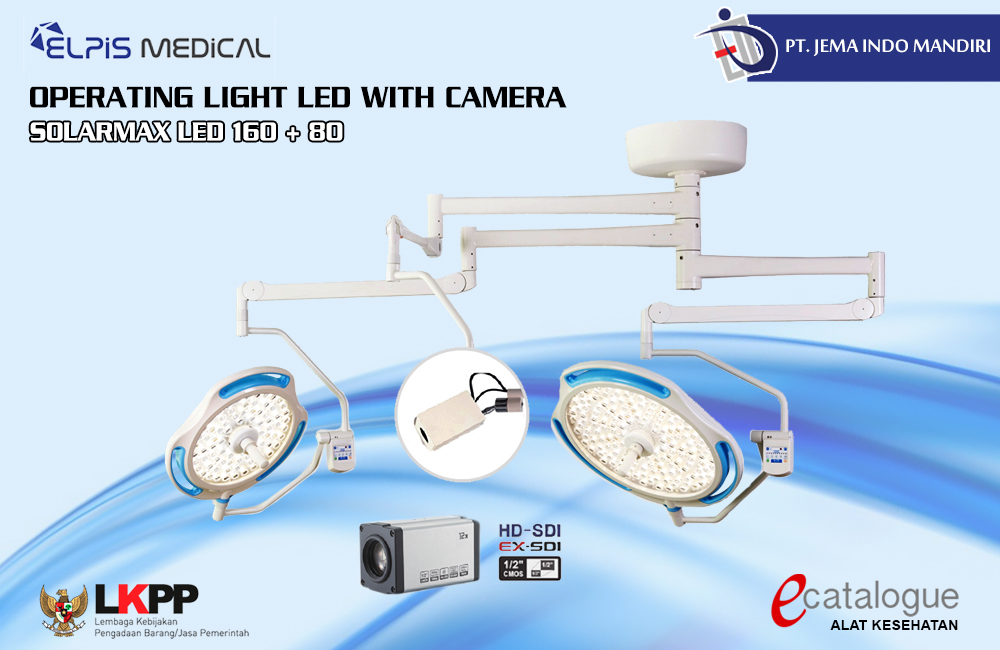

SOLARMAX LED160+80 WITH CAMERA

Lamp diameter

830mm+640mm

Lamp type

convex lens

Maximum Illumination(Lux)

160,000Lux + 120,000Lux

Colour temperature(K)

4200

CRI (colur rendering index)

≥ 96

Focusing field diameter

Φ100~300mm + Φ100~250mm

Light field depth

850mm

Number of LEDs

240(160+80)EA

LED Life time

50,000 hours

Touch on/off

Touch panel & Remote Control (option)

Power consumption

240W + 120W

Dimming range

20~100% (5steps)

Opto Semiconductors

Germany LED Osram

Spring arm

Germany Ondal

Camera

Include (With spring arm)

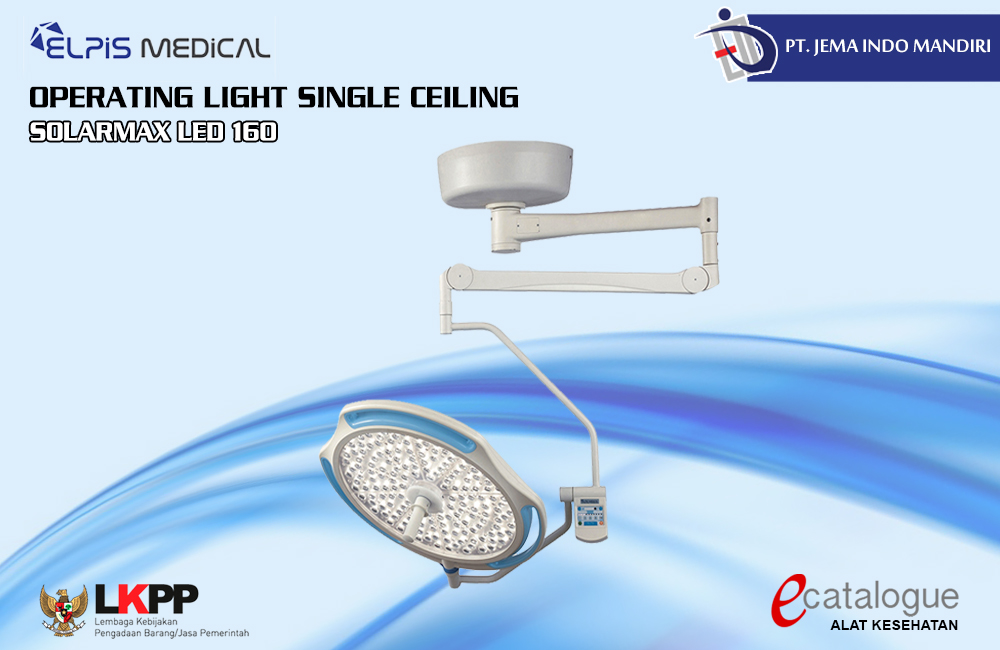

ELPIS MEDICAL - KOREA

SOLARMAX LED 160

Lamp diameter

830mm

Lamp type

convex lens

Maximum Illumination(Lux)

180,000Lux

Colour temperature(K)

4,300 ± 200

CRI (colur rendering index)

≥ 95

Focusing field diameter

Φ100~300mm

Light field depth

850mm

Number of LEDs

160 EA

LED Life time

50,000 hours

Touch on/off

Touch panel & Remote Control (option)

Power consumption

240W

Dimming range

20~100% (5steps)

Opto Semiconductors

Germany LED Osram

Spring arm

Germany Ondal

ELPIS MEDICAL - KOREA

EL-ET 100

Lamp diameter

830mm

Lamp type

convex lens

Maximum Illumination(Lux)

180,000Lux

Colour temperature(K)

4,300 ± 200

CRI (colur rendering index)

≥ 95

Focusing field diameter

Φ100~300mm

Light field depth

850mm

Number of LEDs

160 EA

LED Life time

50,000 hours

Touch on/off

Touch panel & Remote Control (option)

Power consumption

240W

Dimming range

20~100% (5steps)

Opto Semiconductors

Germany LED Osram

Spring arm

Germany Ondal
